Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces

LIUZHOU ZODE MACHINERY SCI-TECH CO.,LTD.
Contact Now

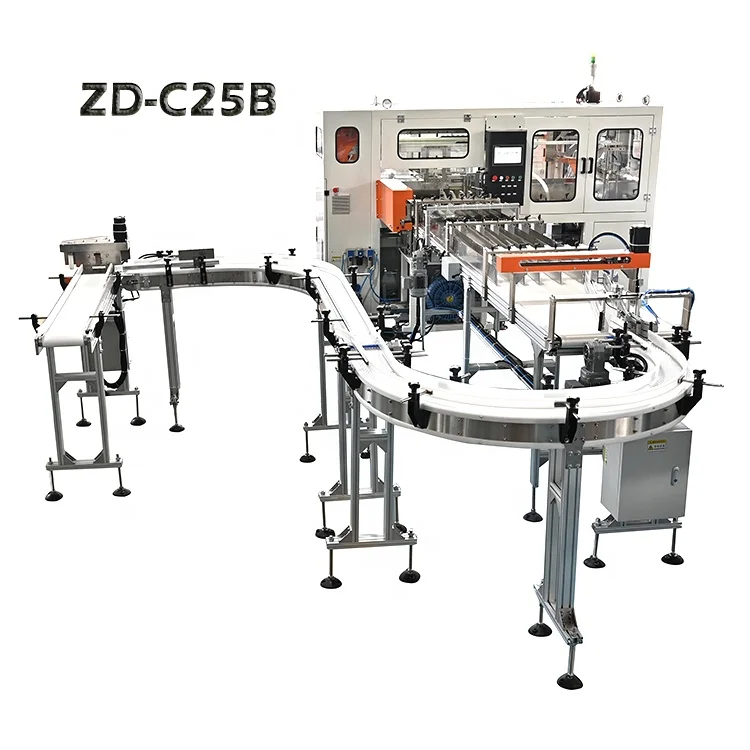

Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces

Brand Name : ZODE

Model Number : ZD-C25B

Certification : CE, ISO

Place of Origin : Liuzhou Guangxi, China

MOQ : 1 Set

Price : USD 43,000/Set

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 30 work days

Packaging Details : 1)Inside package is plastic film, outside is wooden or plywood case 2)full automatic instant porridge machine packaging is based on the customers' need). 3)Only plastic film nude packing with wooden pallet. 4)We can supply fumigation package and certificat

Size Range Bag : Max.L420*W420*H220(mm)

Packing Film : PE precast bag

Set Packing Speed : 25bags/min

Warranty of core components : More than 5 years

Production Capacity : 25bag/min

Packing Arrangement : horizontal packing

Key Selling Points : Flexible Manufacturing

Dimension(L*W*H) : L2900*W1500*H1950(mm)

Driven Type : Electric

Contact Now

Product Description
Full automatic toilet paper napkin tissue making bundle machine
Items
Technical parameters
Size range bag
Max.L420*W420*H220mm
Packing specifications
1-2 each row, each row 3-15 pieces
Packing arrangement
Horizontal packing
Set packing speed
25bags/min
Stable packaging speed
5-20bags/min
Packing film
PE precast bag
Total power supply
11KW
Mini air pressure requirement
0.5Mpa
Power supply
380V 50HZ
Weight
2200KG
Outline dimension
L2900*W1500*H1950mm
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
  • Product performance description:

1.It adopts advanced servo drive,touch screen and PLC. Parameter is set conveniently and quickly. Machine automatic completes product from the automatic feeding, arranging, opening the bag, filing into the bag, inserting angle and sealing.
2.The machine is designed to have a quick, flexible format changeover, besides change the time less than 10 minutes.
3.The world's first 180-degree flip on the bag body, making the device smaller, lower energy consumption.

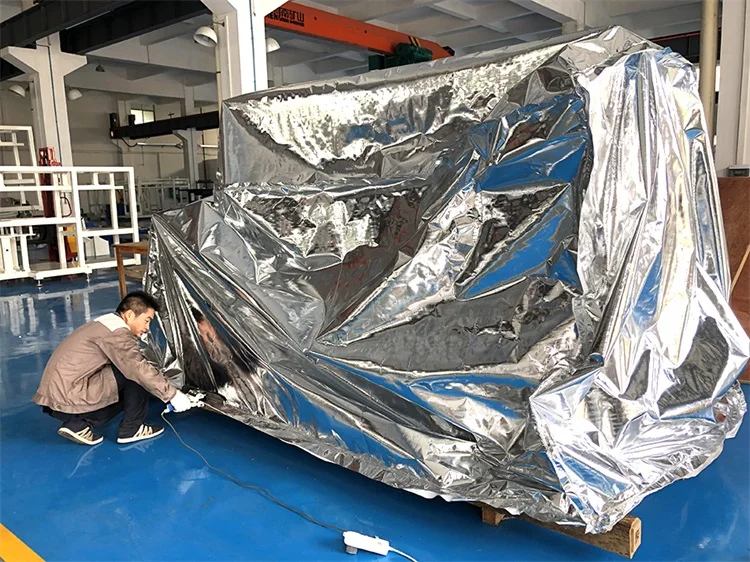

Packing&Shipping
Tissue paper bundle packing machine:
1. cover with plastic film
2. vacuum package
3. export wooden box packing
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces

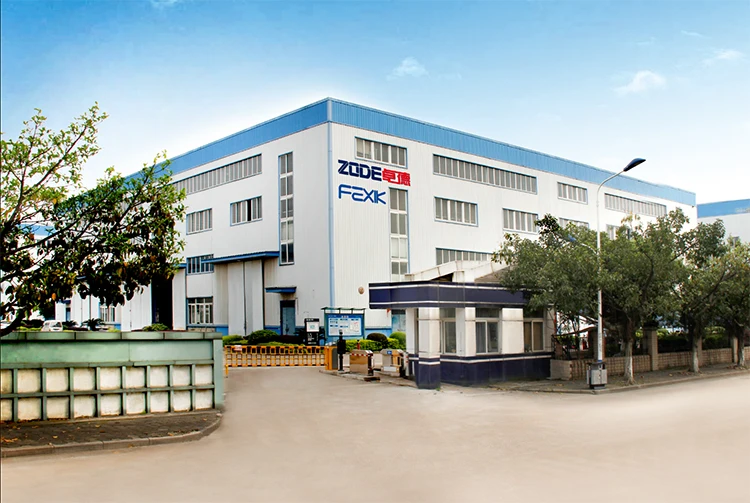

Company Introduction
Liuzhou ZODE Machinery Sci-Tech Co., Ltd.
Liuzhou ZODE Machinery Sci-Tech Co., Ltd. is a high-tech enterprise, integrating R&D,
product
ion and sales, dedicating to whole complete automatic household tissue production line equipment from raw paper to finished package, and offering perfect solutions to maximize value for customers.

Our products include toilet rolls packing machine, kitchen towel packaging machine, facial tissue packing machine, toilet paper and kitchen towel production line, facial tissue and hand towel production line, and other household tissue paper machines, which are exported to Middle East, Asian countries, Americas, Europe and Africa.

We have been committing to research and innovation for many years, have a number of national invention patents and full independent intellectual property rights, and have passed international CE, ISO9001 certificates. Based on the recognition and support of many customers at home and abroad, ZODE Machinery will continue to enhance its core competitiveness, optimize product structure, improve management mechanisms and actively introduce technical personnel. With strong technical strength, we
continually commit to design, develop, and promote our products, which not only can provide customers with high-quality products, but also provide with customized products.
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
Exhibition
Horizontal 25bag/min 11KW Toilet Roll Packing Machine 15 pieces
